Building Elevation Design: The Definitive Architectural Guide to Styles, Materials, Plot Formats, and Technical Drawings

A building elevation design is a scaled architectural orthographic blueprint and three-dimensional spatial projection that illustrates the exterior vertical envelope of a structure. Far beyond mere decorative styling, an elevation is where structural integrity, microclimatic solar calibration, volumetric proportioning, and tactile material science converge to articulate a building's identity on the streetscape.

Whether commissioning a contemporary minimalist residence, an imposing classical kothi, or an urban infill dwelling, the exterior facade functions as both a thermal climatic barrier and an emotional threshold. As documented in authoritative structural resources such as the JK Cement Building Elevation Architectural Guide, an elevation translates internal floor plans into three-dimensional reality, establishing strict height datums, window sill alignments, roof pitch slopes, and surface cladding transitions before construction begins.

1. Architectural Anatomy: What Is a Building Elevation Design?

In classical architectural treatise dating back to the Roman architect Marcus Vitruvius Pollio, a building’s exterior must satisfy three immutable tenets: Firmitas (structural permanence), Utilitas (programmatic utility), and Venustas (aesthetic delight). In contemporary façade engineering, an elevation is an orthographic projection drawn without perspective foreshortening—meaning that every line, sill, beam, and wall segment is drafted strictly perpendicular to the viewing plane at a mathematically precise scale (typically 1:50 or 1:100).

A complete architectural drawing dossier encompasses four distinct exterior elevation views:

• Front Elevation (Street / Approach Facade): The primary public-facing surface that establishes curb appeal, vehicular arrival gates, car porch canopies, entrance porticos, and primary fenestration rhythms. Curated visual concepts and real-world project portfolios can be surveyed across collections such as Pinterest Elevation Ideas by Imtiaz Khan and Deep Kunwer Front Elevation Collections.
• Rear Elevation (Private Garden / Sanctuary Facade): Facing the internal private grounds, pool terraces, or courtyard lawns, this elevation prioritizes expansive glass curtains, zero-threshold indoor-outdoor transitions, and deep shading overhangs designed to shield family living spaces from direct sightlines.
• Left & Right Side Elevations (Flank Facades): Crucial for municipal statutory setback compliance, side elevations articulate utility access, service entrances, acoustic privacy buffering between adjacent neighbors, and high clerestory windows engineered to capture natural light without sacrificing privacy.
• Split-Level & Courtyard Elevations: For complex topographies and inward-looking atrium houses, internal elevations map lightwells, reflecting water canals, and multi-tier garden walls.

2. The Six Core Architectural Elevation Styles

The stylistic vocabulary of an exterior facade must reflect the geographic climate, cultural heritage, and programmatic aspirations of the occupants. Contemporary residential architecture has evolved past cookie-cutter facade templates into sophisticated vernacular adaptations:

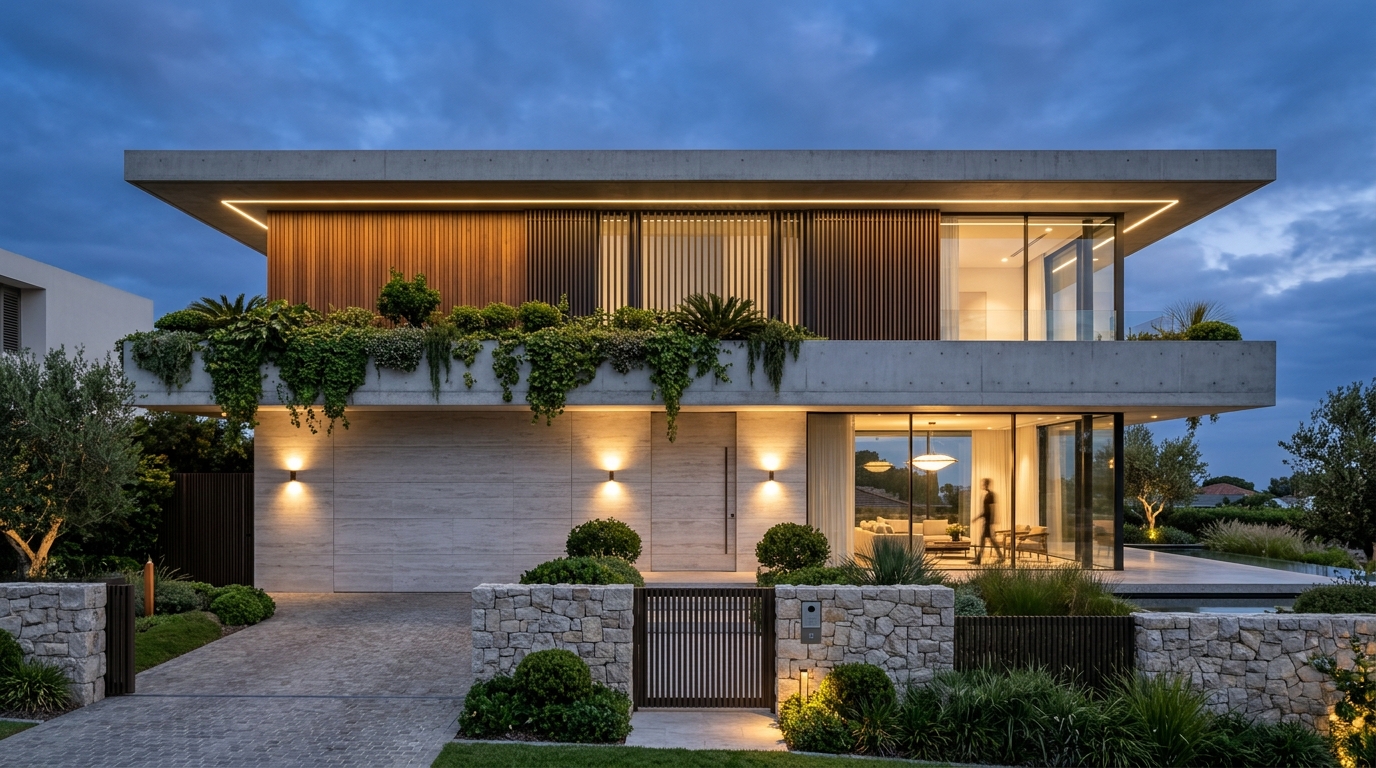

A. Contemporary Minimalist Box & Cantilevered Volumes

Characterized by interlocking rectangular volumes, asymmetrical massing, and floating roof planes engineered via post-tensioned concrete slabs or concealed wide-flange structural steel girders. These facades eliminate ornate moldings in favor of pure geometric shadow lines, negative reveals, and massive floor-to-ceiling glass expanses. Innovative contemporary exterior compositions can be explored through resources like OpenHouseDesigns 10 Innovative Front Elevation Designs and Arch Stylus Contemporary Elevations.

B. Spanish Revival & Mediterranean Villa Elevations

Spanish and Mediterranean elevations celebrate warmth, tactile craft, and organic geometry. Signature elements include hand-troweled terracotta stucco, low-pitched barrel mission clay tile roofs, curved Roman archways, sheltered loggias, wrought iron window grilles, and arched car porches with rustic stone piers. These facades create an intimate residential sanctuary suited to sun-drenched regional microclimates. Detailed single and double-floor Spanish elevation layouts are documented across P.V. Reddy House Elevation Collections.

C. Islamic Geometries & CNC Laser-Cut Jali Screen Facades

Evolving from ancient Mashrabiya wooden oriel lattices and Mughal stone jalis, modern Islamic elevation design integrates computerized numerical control (CNC) laser-cut aluminum, brass, and terracotta geometric screens. These perforated lattices serve dual roles: providing absolute visual privacy for interior living quarters while diffusing harsh solar radiation and casting ever-changing poetic shadow patterns across interior stone floors. For regional aesthetic walkthroughs, see SKS 3D Construction Elevation Walkthroughs.

D. Classical, Neo-Classical & Contemporary Kothi Architecture

Celebrated in grand residential estates, kothis, and luxury bungalows, Neo-Classical elevations convey timeless authority through strict axial symmetry, grand double-height entrance porticos, fluted Corinthian or Ionic columns, carved limestone pediments, and molded roofline balustrades. Modern contemporary kothis blend these classical proportions with sleek glass balustrades, integrated LED lighting coves, and oversized vehicular porte-cochères. Extensive 1-kanal and 2-kanal kothi elevation inspirations are curated on Archlattice Elevation Design Collections.

E. Single-Floor & Ground-Level Modern Bungalow Elevations

Single-floor elevations prioritize low-slung horizontal elegance inspired by Frank Lloyd Wright’s Prairie School architecture. By emphasizing wide cantilevered eaves, linear Roman brick or stone ashlar cladding, and panoramic ribbon fenestration, single-story homes achieve an expansive, grounded presence that maximizes garden sightlines and universal barrier-free access.

F. Brutalist Monolithic Concrete & Industrial Framing

For avant-garde architectural patrons, monolithic elevations cast in rough-sawn board-formed concrete celebrate raw tectonic honesty. Combined with weathered Corten steel panels and dark anodized structural glazing, these facades resist weathering gracefully, requiring minimal long-term surface recoating.

3. Materiality & Tectonic Palettes for Luxury Facades

The longevity and visual gravitas of an elevation depend entirely on the material specification. A masterfully detailed elevation strictly avoids synthetic imitation claddings in favor of authentic tactile materials that age with grace:

• Natural Stone Cladding: Natural stones such as honed silver travertine, flamed granite, Gwalior mint sandstone, and Italian limestone are mechanically anchored using ventilated 316 stainless steel bracket systems. Ventilated rainscreens allow thermal dissipation behind the stone facade, preventing moisture accumulation and efflorescence.
• Wood-Plastic Composite (WPC) & Thermowood Louvers: Fluted exterior composite fins and thermally modified ash or teak provide the organic warmth of real timber without warping, rotting, or requiring annual varnish maintenance under intense ultraviolet radiation.
• Smooth Mineral Plaster & Stucco: High-grade acrylic-modified breathable lime stuccos provide seamless monolithic surfaces that expand and contract with seasonal thermal shifts without cracking.
• Board-Formed Architectural Concrete: Cast in rough-sawn Douglas fir or pine timber forms, board-formed concrete permanently captures natural wood grain relief within structural masonry.
• Architectural Metallurgy: Anodized marine-grade aluminum mullions, patinated architectural bronze, and corten steel plates introduce precision shadow lines and structural crispness. Explore creative metal and material compositions via M.S. Creative Architect Contemporary Elevation Design.

4. Technical Fenestration, Glass Balustrades, and Laser-Cut Jali Screens

A building’s windows—its fenestration—define the rhythm of light and shadow across the exterior skin. When detailing high-end residential elevations, standard punched-hole residential windows are replaced with coordinated structural fenestration assemblies:

A. Thermally Broken Curtain Walls

By specifying thermally isolated structural aluminum mullions paired with triple-glazed units containing spectrally selective Low-E coatings and argon gas fills, architects achieve monumental 12-foot to 20-foot glass walls without compromising energy codes or subjecting interior spaces to blistering greenhouse heat.

B. Frameless Glass Balustrades

To ensure uninterrupted elevation sightlines, upper-floor balcony railings should utilize heavy 12mm+12mm PVB toughened laminated structural glass seated in recessed floor shoe channels. Concealing the aluminum base profiles beneath finished exterior floor tiles creates an ethereal, floating glass parapet that eliminates visual clutter from the street view.

C. Solar Shading & Brise-Soleil Engineering

Integrating horizontal brise-soleil louvers and CNC jali screens reduces solar heat gain coefficient (SHGC) by up to 60%, drastically slashing HVAC cooling loads while permitting natural ambient daylight to illuminate deep floor plates. Practical visual examples of modern elevation compositions can be seen via MyHouseMap Top 10 Elevation Design Ideas.

5. Architectural Lighting Strategy: Crafting Nighttime Curb Appeal

An exceptional elevation design lives two distinct lives: a serene sculptural form during the daylight hours, and a dramatic, illuminated architectural canvas after sunset. Professional exterior architectural lighting adheres to strict lighting design principles:

• Color Temperature Discipline: Always specify warm 2700K to 3000K correlated color temperature (CCT) luminaires with a high Color Rendering Index (CRI > 90). Harsh 6000K cool white illumination washes out natural stone textures and gives luxury residences an uninviting commercial feel.
• Vertical Wall Grazing: Position narrow-beam in-ground IP68 well lights 6 to 8 inches away from textured stone cladding or board-formed concrete. The glancing upward beam highlights microscopic textural depth, creating dramatic shadow contrasts.
• Concealed Linear Soffit Reveals: Recess continuous LED channel profiles with matte frosted diffusers within cantilevered roof soffits. This casts a gentle downward curtain of ambient light that emphasizes the building’s horizontal lines without any visible bulb glare.
• Dark-Sky Compliance: Direct all path, step, and boundary illumination strictly downward to eliminate unwanted light pollution and glare into neighbor windows.

6. Biophilic Integration: Planters, Living Walls, and Microclimate Facades

Modern architecture frequently risks appearing cold and unyielding if not balanced by living natural textures. Biophilic architectural design softens geometric box facades through deliberate living insertions:

• Cantilevered Planter Boxes: Integrated reinforced concrete planters built into second-floor terrace edges create cascading green curtains of ivy, trailing rosemary, or jasmine that visually anchor horizontal concrete slabs.
• Vertical Trellis Cables: High-tensile 316 stainless steel wire-rope trellis grids allow deciduous climbing vines to shade east- and west-facing facades during scorching summer months while dropping their leaves in winter to welcome warming passive solar rays.
• Root Barrier & Drainage Engineering: All built-in architectural planters must include multi-layer EPDM waterproofing membranes, dimpled drainage plates, continuous perforated weep hole drains routed to internal stormwater downspouts, and automated subsurface drip irrigation emitters.

7. Plot Sizes & Regional Formats: From 5 Marla to 2 Kanal Master Plans

Elevation design must always respond to regional plot geometries and municipal building bylaws. In South Asian and international suburban developments, specific standard plot sizes govern architectural massing:

A. 5 Marla Front Elevations (Approx. 25' x 45' / 1,125 sq ft)

With narrow street frontages, 5 Marla elevations require vertical volumetric articulation to avoid appearing like a flat wall. The standard design strategy incorporates:

• A single-car porch positioned beneath a projecting second-floor cantilevered bedroom box.
• Vertical fluted wood or aluminum louver panels on one side to draw the eye upward and elongate the facade.
• A compound boundary wall featuring a flush-panel sliding metal gate that mirrors the material language of the main house. Additional compact plot elevation concepts can be referenced at NPL Builders Residential Elevations.

B. 10 Marla Front Elevations (Approx. 35' x 65' / 2,250 sq ft)

The 10 Marla plot format offers sufficient frontage for balanced, asymmetrical G+1 duplex architecture:

• A dedicated two-car porch featuring post-tensioned cantilevered roof beams without awkward corner support columns.
• A double-height central glass entrance portal connecting the ground-floor foyer with the upper family lounge.
• Stepped-back second-floor master balconies paired with integrated planter boxes that establish multi-layered depth.

C. 1 Kanal Front Elevations (Approx. 50' x 90' / 4,500 sq ft)

The gold standard of luxury suburban living, 1 Kanal plots provide generous 50-foot road frontages that unlock grand architectural compositions:

• Expansive 3-car porches with separate pedestrian and vehicular arrival sequences.
• Dramatic 6-to-8 foot floating cantilever roof overhangs lined with exterior warm wood or aluminum soffit paneling.
• Distinct articulation between formal entertaining drawing rooms (stone-clad, authoritative) and private master suites (warm louvers, glass terraces).

D. 2 Kanal & Multi-Acre Estate Elevations (Approx. 100' x 90'+ / 9,000+ sq ft)

For expansive private compounds, elevations shift from single-volume facades into monumental multi-pavilion compositions:

• Curated motor court arrival sequences with stone boundary piers, security gatehouses, and central water fountains.
• Symmetrical or pavilion-style wings connected by glass bridges and shaded colonnades.
• Integrated infinity-edge reflecting pools that mirror the illuminated facade into an ethereal evening tableau.

8. Technical Elevation Blueprints: Reading Dimensions, Scales, and Callouts

An elevation drawing prepared by a licensed architectural studio contains millimetric data that general contractors, stone fabricators, and window glazing installers execute on site. Key components of a builder-ready elevation blueprint include:

• Grid Alignment System: Structural column grid bubbles (A, B, C / 1, 2, 3) aligned precisely with the foundation and floor plans to ensure structural load paths transfer cleanly.
• Material Callout Schedule: Detailed notes specifying quarry names, stone thickness (e.g., 25mm honed silver travertine), mortar specifications, expansion joint spacing (every 20 feet maximum), and paint sheen levels.
• Weep Holes & Flashing Details: Specifying continuous aluminum counter-flashing, vapor-permeable air barriers, and weep hole tubes installed at the base of cavity masonry walls to expel condensation.
• Scale Multipliers: 1:100 for overall municipal submission elevations, 1:50 for general contractor structural construction sets, and 1:10 or 1:5 for intricate metal screen brackets and stone reveal joints.

9. Common Elevation Mistakes to Avoid

Flawed exterior detailing can diminish the architectural value and market appeal of an otherwise sound residence. When designing or commissioning an elevation, avoid these critical pitfalls:

• The "Mask" Facade Trap: Over-decorating the front elevation with expensive stone and louvers while leaving the side and rear elevations as bare, cheap raw brickwork or painted plaster. True architecture is experienced in 360 degrees.
• Material Chaos (Over-Cladding): Combining more than three or four disparate materials on a single facade (e.g., mixing rustic brick, shiny granite, wooden louvers, patterned tiles, and glass mosaics). Restraint is the hallmark of luxury design; select one hero stone, one warm timber accent, and one crisp metallic frame.
• Disjointed Window Datums: Installing windows with disparate head heights across the same floor plate. Maintain a continuous horizontal lintel datum line (typically at 8′-0″ or 9′-0″) to instill visual calm.
• Ignoring Solar Orientation: Placing massive unshaded floor-to-ceiling glass on an unshielded western facade, which will cook interior living rooms under harsh afternoon heat and skyrocket electric cooling bills.
• Inadequate Drainage Detailing: Failing to detail drip-edge grooves beneath projecting concrete sills, resulting in dirty rainwater running down white stucco walls and leaving permanent dark streaks.

10. Curated 100-Figure Visual Catalog of Elevation Designs

To provide comprehensive visual reference across every regional plot format, architectural style, and material composition, our studio has compiled this exhaustive 100-figure architectural atlas. Each figure details the architectural style, ideal plot footprint, primary materials, and professional design attribution:
